Blue Bucket Tools

Bat System for Aspire Pottery Wheels

Bat System for Aspire Pottery Wheels

Regular price $95.00
Regular price Sale price $95.00
Sale Sold out
Shipping calculated at checkout.
Additional Inserts

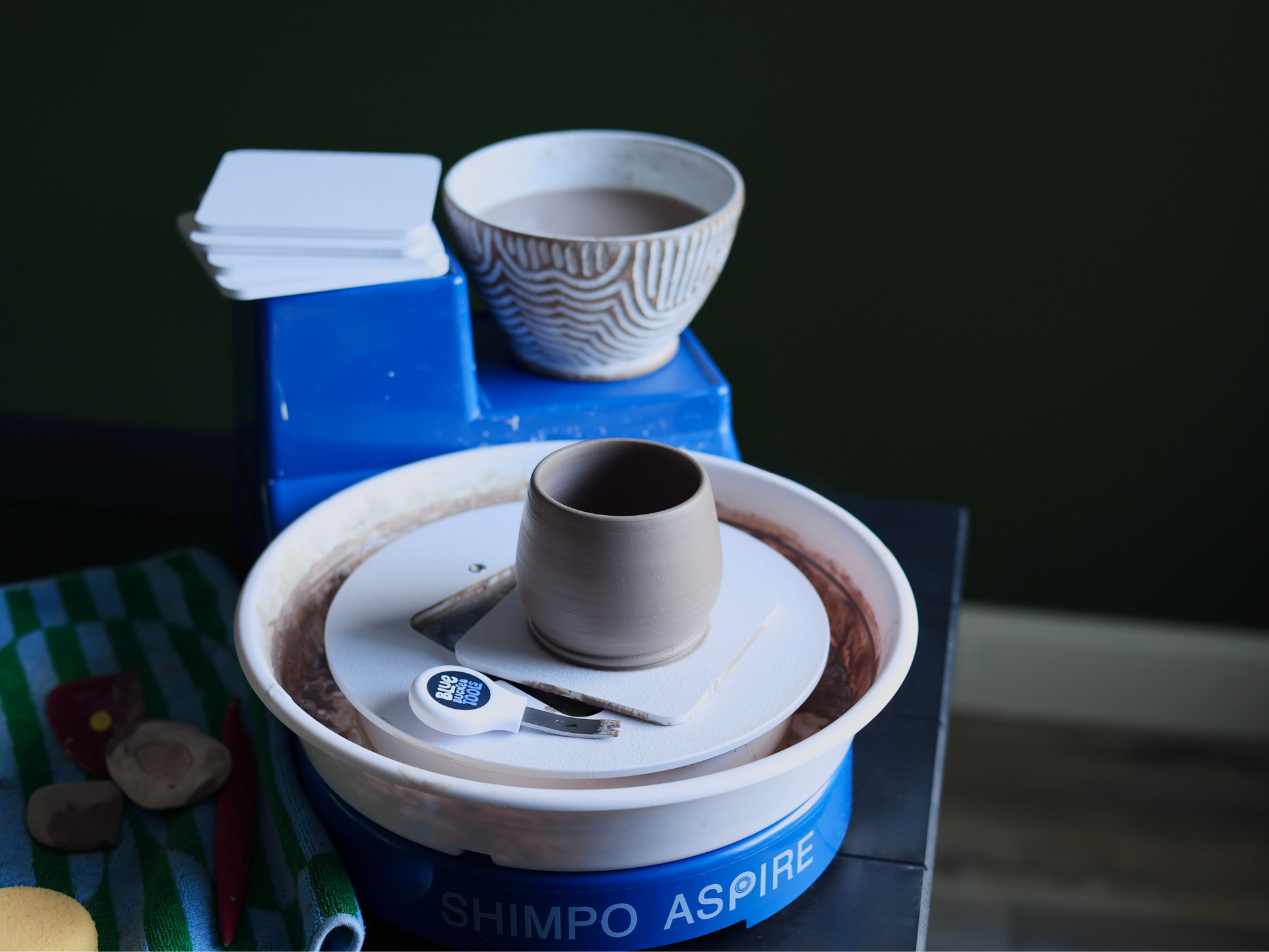

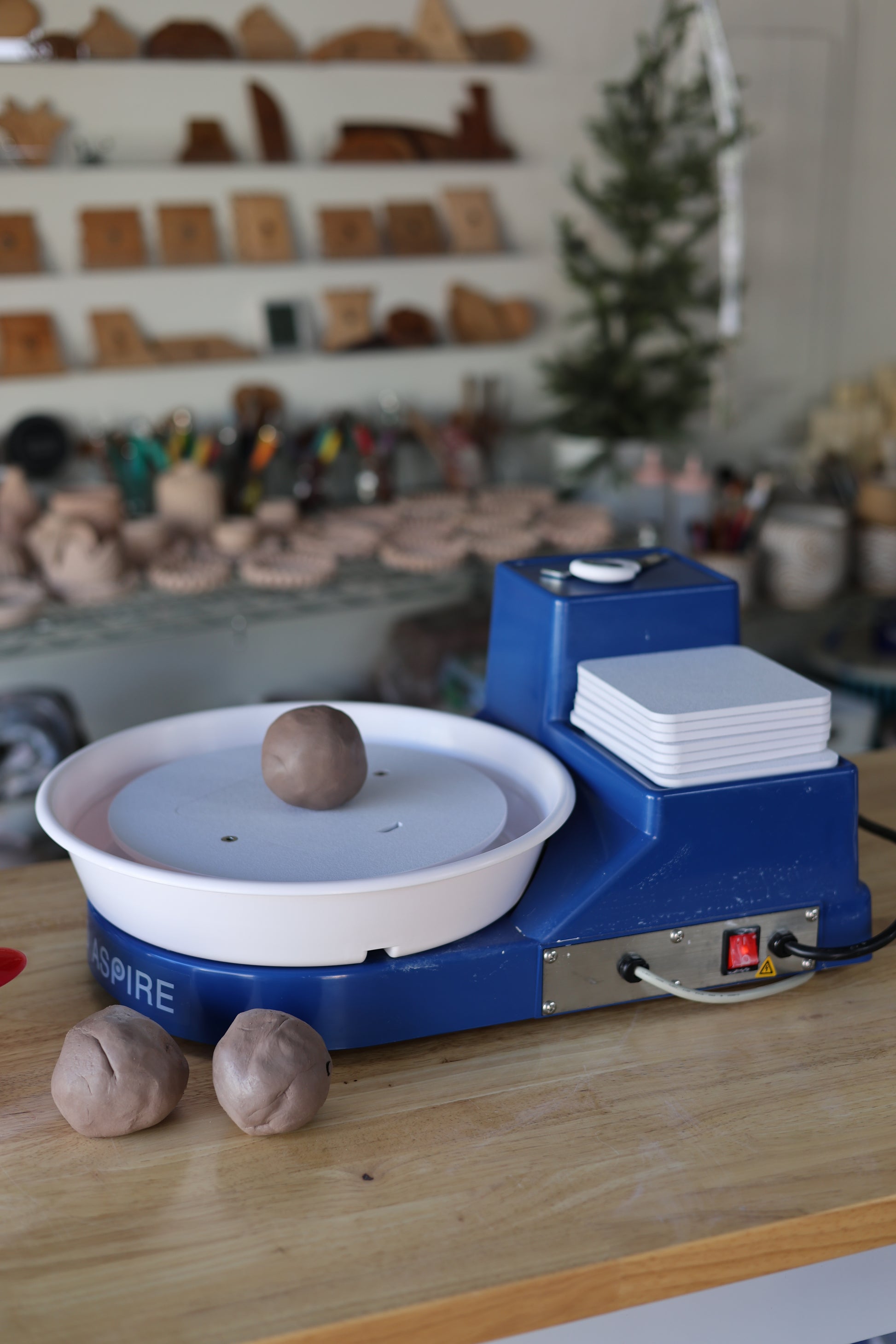

We had so many customers request a bat system for their Nidec/Shimpo Aspire pottery wheels that we decided to take this project on. While our Full Tile Bat System works well for full-sized wheels, we found that the tiles do not fit between the bat pins, and developed an innovative solution using the cutout sections of our larger bat systems. The motherboard surround is made from the exact same solid ABS material as the inserts, giving a super-deluxe, totally flush, nearly seamless feel on the wheel. We rounded the inserts for increased durability and comfort in use. Each insert is cut, routed, sanded, and inspected for perfect fit.

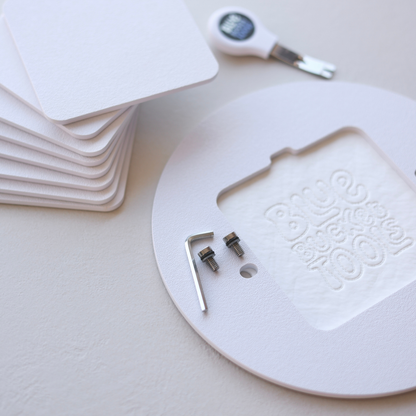

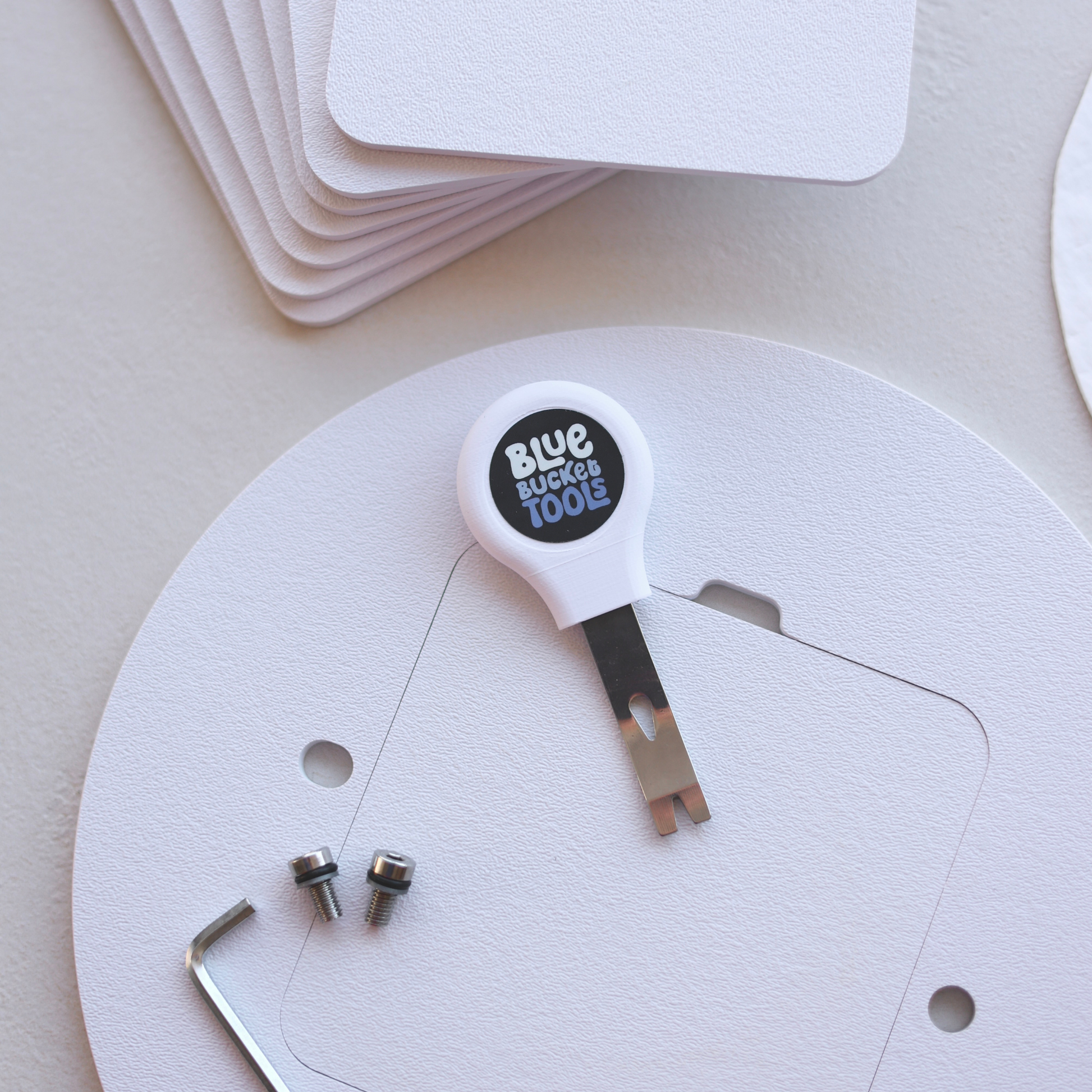

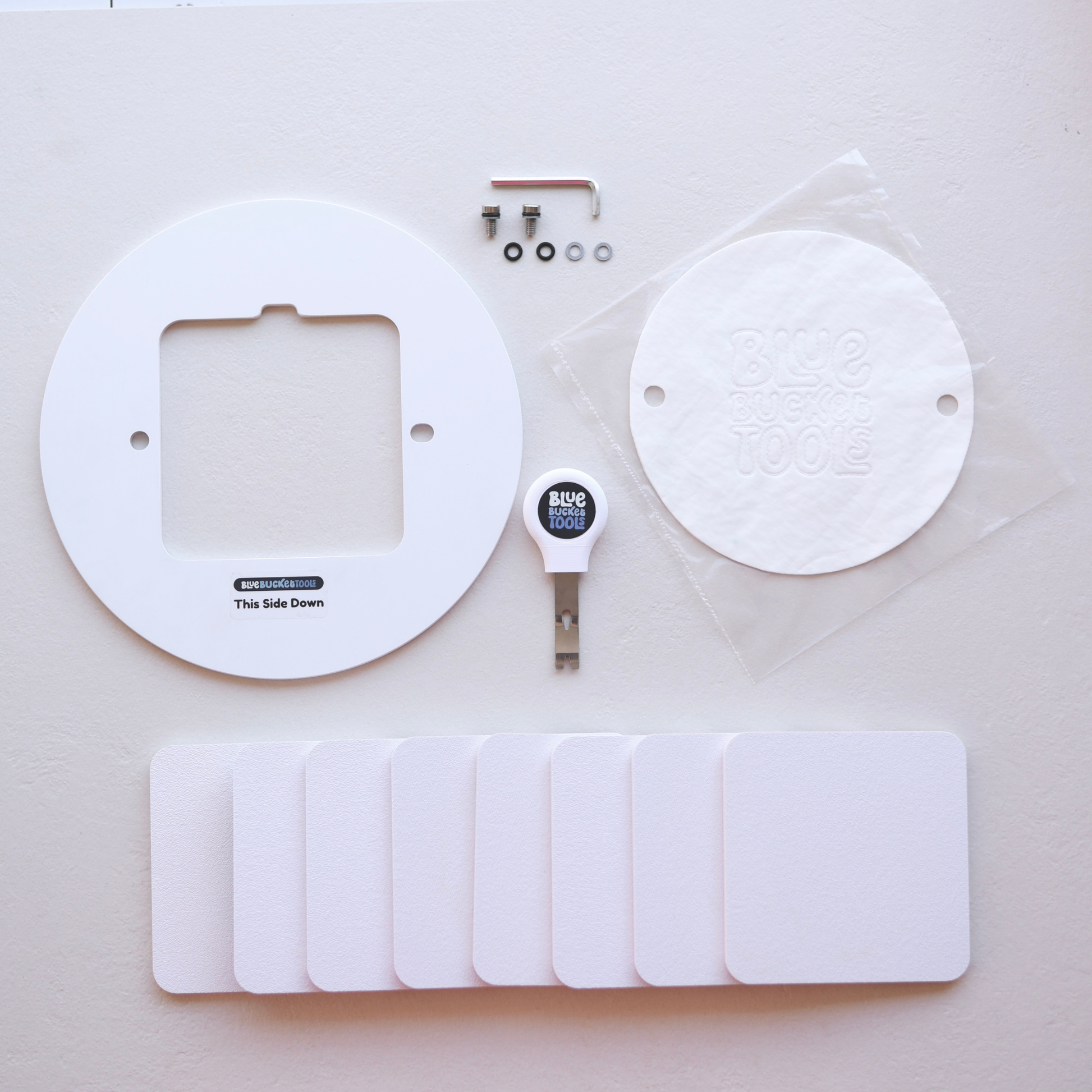

This system includes:

  • Motherboard surround
  • 8x Plastic textured inserts
  • Our New Batlock Bat Pins
  • Slim Pry Tool
  • "The Tortilla" Shammy

You can add extra inserts in increments of four, for $20 per increment, or $5 per insert

Price includes shipping

Similar to our other products, this system is made to last, using the most durable materials we can find, and including extra parts for years and years of heavy use.




View full details

Each Kit Includes:

Parts

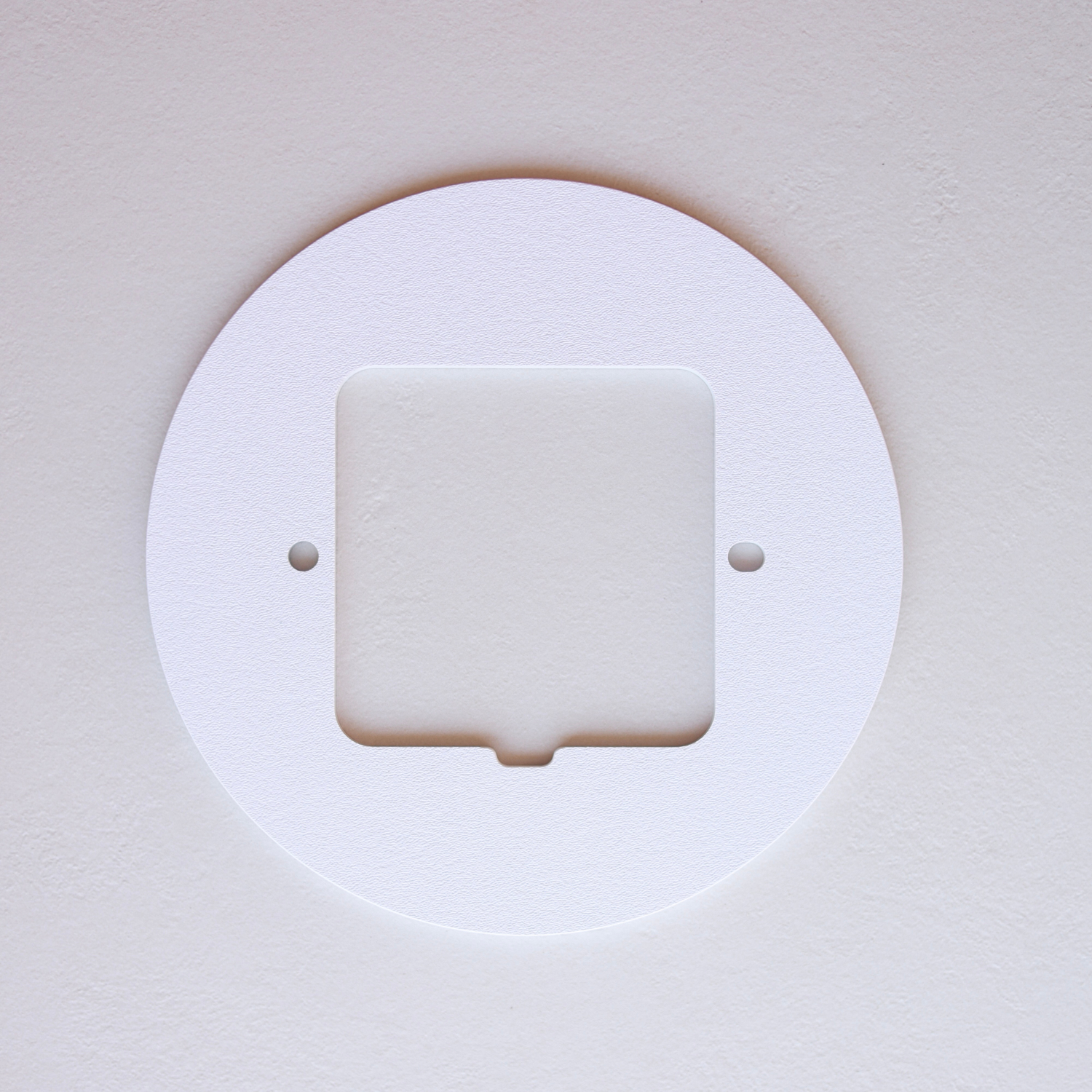

Motherboard

The Motherboard surrounds the inserts and holds them firmly in place. In the case of the Bat System for Aspire, the motherboard also extends past the edge of the wheel head to fill the splash pan area, which helps the water land where it is supposed to.

Parts

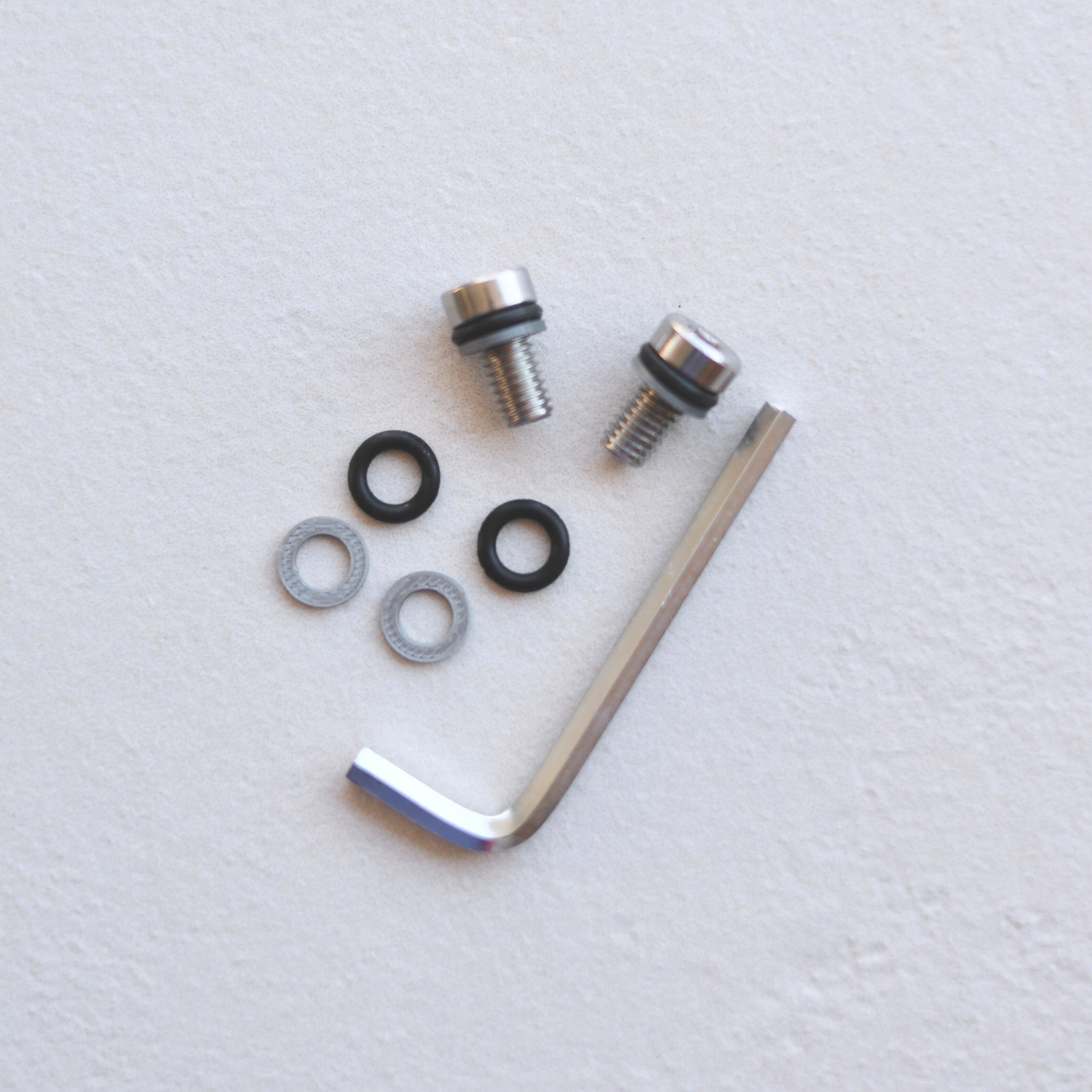

Batlock Bat Pins

Our new 3-part Batlock Bat Pins are unique and allow you to very firmly secure the motherboard to the wheel head. simply finger tighten them, push the motherboard down to the wheel head, and tighten the pins using the included 3mm Hex Key. as you tighten, the rabbet part squishes outward, making a securer bond between the wheel and the motherboard.

Parts

"The Tortilla" Mini Shammy for Aspire

In order to get the very best experience of any bat system for Aspire wheels, we designed and produced a smaller version of our Shammy, made just for aspire wheels. this substrate, made from vegan, synthetic chamois material, is used wet and suctions the inserts down to the wheel head, making a very secure and satisfying experience.

Button label

Parts

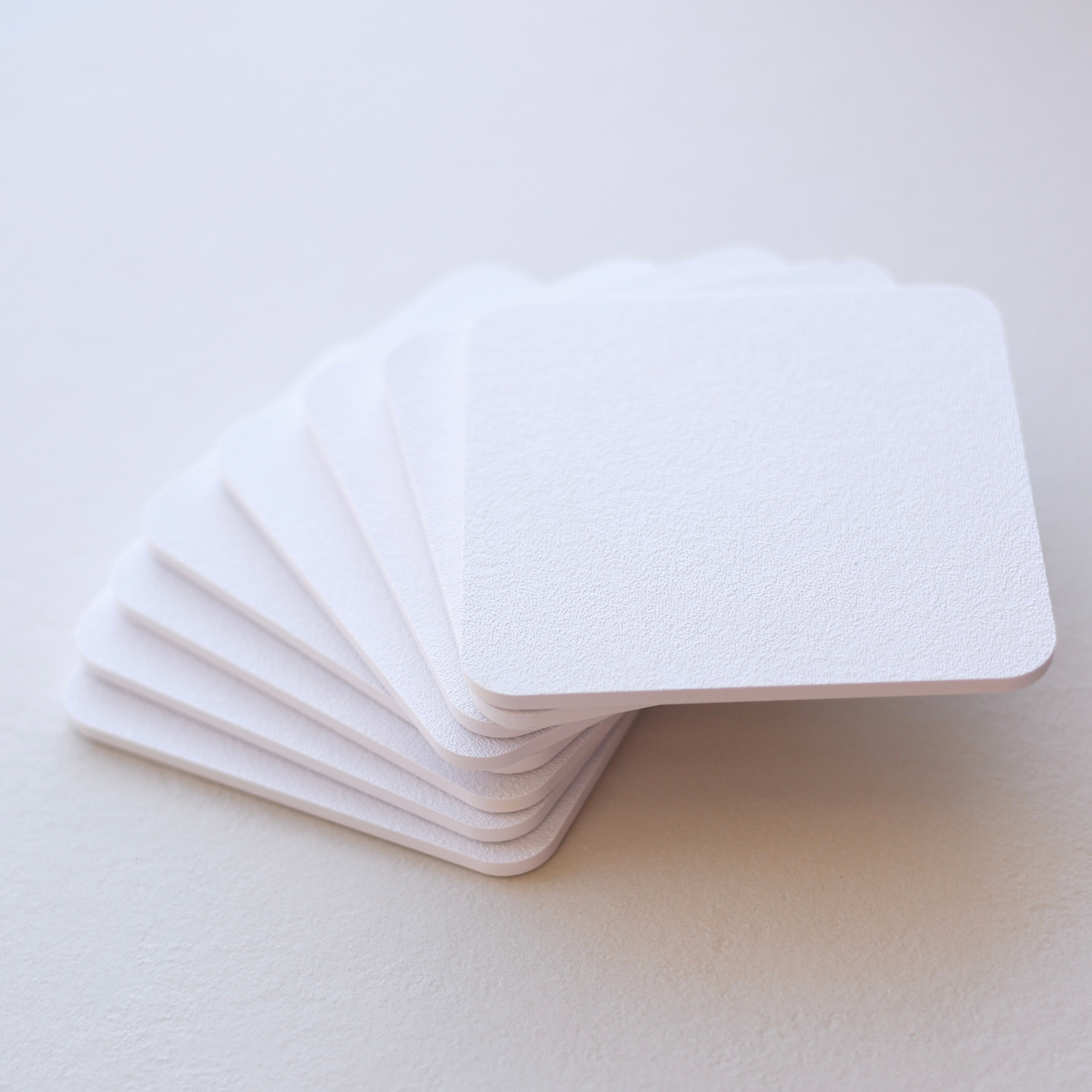

8 Inserts

The base price includes 8 inserts, specially designed to fit the motherboard with just enough space to install and remove them with ease. Unlike our full-sized wheel system that uses tiles, this system uses inserts made from the exact same ABS plastic as the surround for a super luxe feel, and a perfectly flush surface. If you want more, you can add them to the order at $5 each per insert, in multiples of four.

Parts

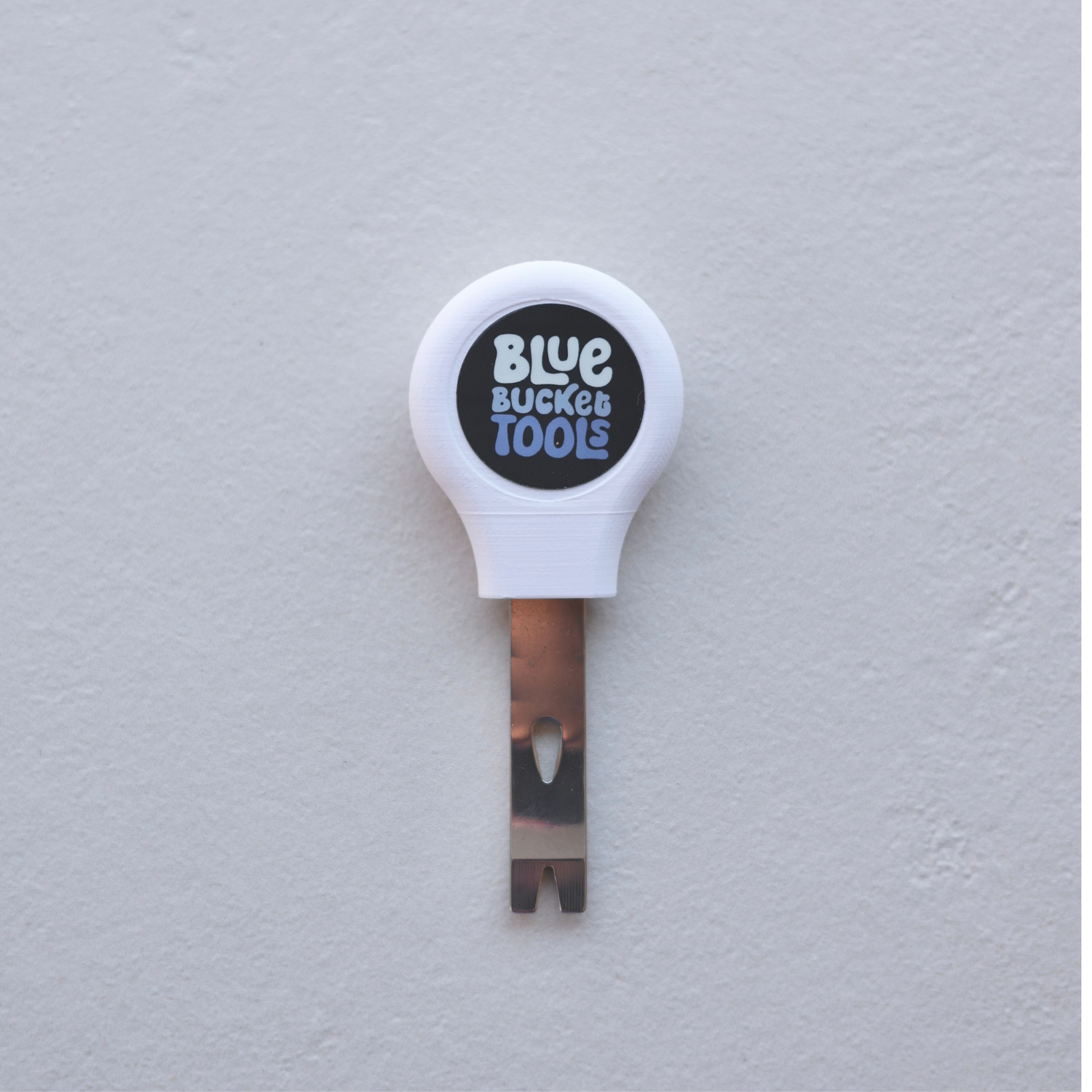

Slim Pry Tool

Unlike most bat systems, we include an ideal tool for easy removal of the inserts. This is a slimmed down version of our regular pry tool. Both work equally well, but we love our new, more compact version and think it is a perfect pairing with this smaller system. The tool is made from stainless steel and PETG plastic handle.

Button label

Product details

How To Use

Turn the pottery wheel off before taking the Blue Bucket Tools Bat System Motherboard on or off the wheel head to avoid possible injury.

Improper usage of the Blue Bucket Tools Bat System may result in injury. Always exercise caution while using a Blue Bucket Tools Bat System to avoid causing injury to yourself or others.

  1. Gently thread the Batlock Bat pin into each bat pin hole. Leave loose.
  2. Wet the shammy then place it on the wheel head.
  3. Place the motherboard on the bat pins.
  4. Press the motherboard down, making sure it is completely flat against the shammy and wheel head.
  5. Using the included hex key, tighten the bat pins down, at least until flush with the top of the motherboard. The more you tighten, the firmer the connection will be. Avoid over-tightening as it may damage the washer or cause wear on the o-ring.
  6. When done throwing, loosen the hex key in order to remove the motherboard for cleaning.

Materials

Motherboard and Inserts

Solid ABS Plastic

Shammy

PVA Synthetic Chamois Non-woven Textile

Pry Tool

  • 18-8 Stainless Steel
  • PETG Plastic

Batlock Bat Pins

  • 18-8 Stainless Steel screws
  • ABS washers
  • Nitrile O-rings
  • Galvanized Steel Hex Key

Measurements

Motherboard

  • 10" Diameter
  • 5"x5" square hole
  • .236" thick
  • Bat Pin Holes: 10mm diameter

Inserts

  • 5" x 5" x .236"

Shammy
